54409轴承-UBC 54409轴承尺寸、图纸、价格
UBC 54409轴承
| 产品名称： | 54409轴承 | 品牌： | UBC |
|---|---|---|---|
| 类型： | UBC轴承 > 推力球轴承 > 双向推力球轴承 | ||
| 描述： | 54409轴承是【UBC轴承 > 推力球轴承 > 双向推力球轴承】的型号，主要用在后轮、机床主轴、减速装置、汽车、振动筛、汽车转向销、水力发电机、啤酒、掘进机、港口起重机等各大领域 | ||
电话/微信：138-8949-5179
UBC 54409轴承详细信息
54409轴承是【UBC轴承 > 推力球轴承 > 双向推力球轴承】的型号，主要用在后轮、机床主轴、减速装置、汽车、振动筛、汽车转向销、水力发电机、啤酒、掘进机、港口起重机等各大领域。
UBC 54409轴承详细参数
| 轴承 | |
| 型号 | 54409 |
| Principal dimensions | |
| d | 45 |
| d2 | 35 |
| D | 100 |
| T1 | 72 |
| T5 | 78.8 |
| T7 | 86 |
| r(min) | 1.1 |
| r1(min) | 0.6 |
| Basic load rating | |
| Dynamic Cr(N) | 129000 |
| Static Cor(N) | 243000 |
| Limiting speed(rpm) | |
| Grease | 1600 |
| Oil | 2400 |
| Dimensions | |
| d3(max) | 100 |
| D1(min) | 47 |
| D2 | 72 |
| D3 | 105 |
| T2 | 44.5 |
| T6 | 47.9 |
| T8 | 51.5 |
| a | 17 |
| b | 12.5 |
| A1 | 23.5 |
| R | 80 |
| Abutment and fillet Dimensions | |
| da(min) | 45 |
| Da1(max) | 67 |
| Da2(max) | 72 |
| ra(max) | 1 |
| ra1(max) | 0.6 |
| Ref. Weight | |
| flat seat washer | 2.71 |
| Spheric Seat washer | 2.76 |
| self-aligning seat washer | 3.40 |

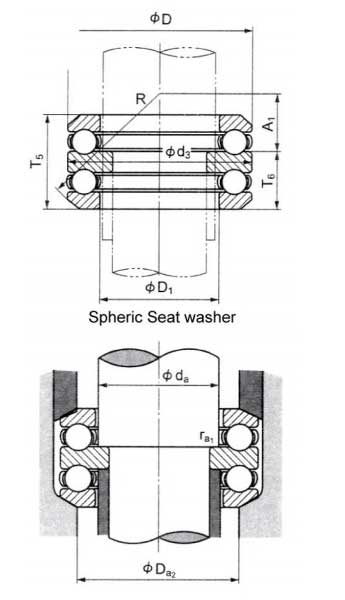

UBC 54409轴承尺寸图纸
