52206轴承-UBC 52206轴承尺寸、图纸、价格
UBC 52206轴承
| 产品名称： | 52206轴承 | 品牌： | UBC |
|---|---|---|---|
| 类型： | UBC轴承 > 推力球轴承 > 双向推力球轴承 | ||
| 描述： | 52206轴承是【UBC轴承 > 推力球轴承 > 双向推力球轴承】的型号，主要用在各种产业机械、各类变速器、挖土机履带轮、铁路车辆、各类产业用减速机、机床主轴、发电厂、制鞋、挖掘机、塔式车库等各大领域 | ||
电话/微信：138-8949-5179
UBC 52206轴承详细信息
52206轴承是【UBC轴承 > 推力球轴承 > 双向推力球轴承】的型号，主要用在各种产业机械、各类变速器、挖土机履带轮、铁路车辆、各类产业用减速机、机床主轴、发电厂、制鞋、挖掘机、塔式车库等各大领域。
UBC 52206轴承详细参数
| 轴承 | |
| 型号 | 52206 |
| Principal dimensions | |
| d | 30 |
| d2 | 25 |
| D | 52 |
| T1 | 29 |
| T5 | 32.6 |
| T7 | 37 |
| r(min) | 0.6 |
| r1(min) | 0.3 |
| Basic load rating | |
| Dynamic Cr(N) | 29300 |
| Static Cor(N) | 58000 |
| Limiting speed(rpm) | |
| Grease | 3400 |
| Oil | 5200 |
| Dimensions | |
| d3(max) | 52 |
| D1(min) | 32 |
| D2 | 42 |
| D3 | 55 |
| T2 | 18 |
| T6 | 19.8 |
| T8 | 22 |
| a | 7 |
| b | 5.5 |
| A1 | 20 |
| R | 45 |
| Abutment and fillet Dimensions | |
| da(min) | 30 |
| Da1(max) | 39 |
| Da2(max) | 42 |
| ra(max) | 0.6 |
| ra1(max) | 0.3 |
| Ref. Weight | |
| flat seat washer | 0.272 |
| Spheric Seat washer | 0.291 |
| self-aligning seat washer | 0.356 |

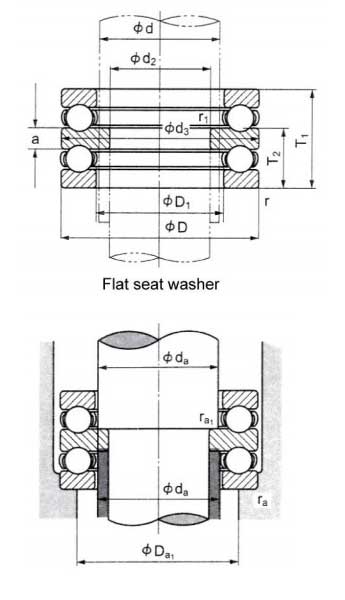

UBC 52206轴承尺寸图纸
